Noise Effector
Animated 3D noise driving offset, rotation, and scale, with simplex, ridged, or turbulence shapes.

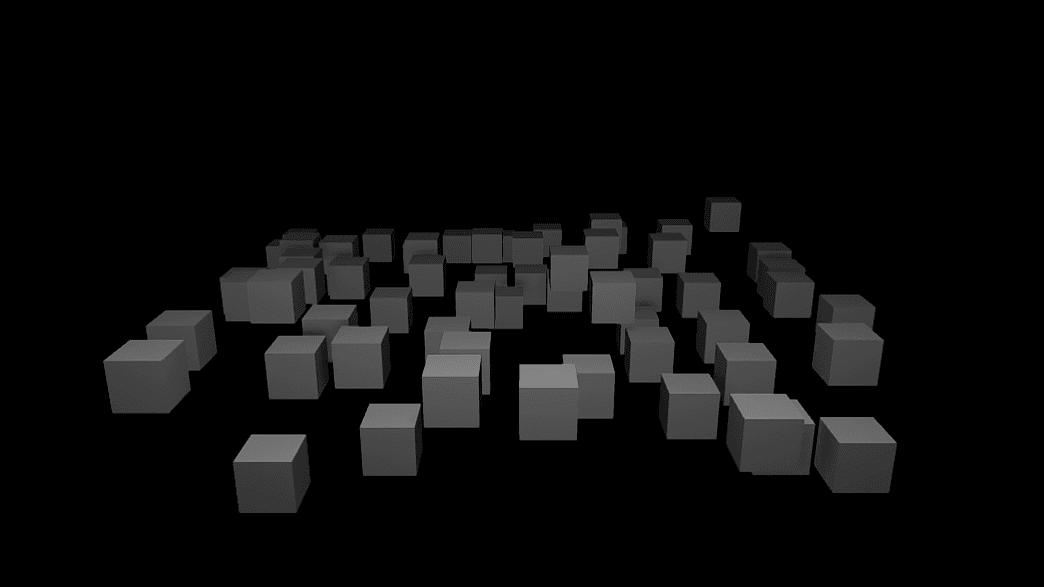

The Noise Effector moves clones by a noise field that drifts over time.
- Noise Type, Noise Scale, Speed
- Octaves, Roughness, Detail Scale, Contrast
- Found in the node graph under Cloners → Effectors

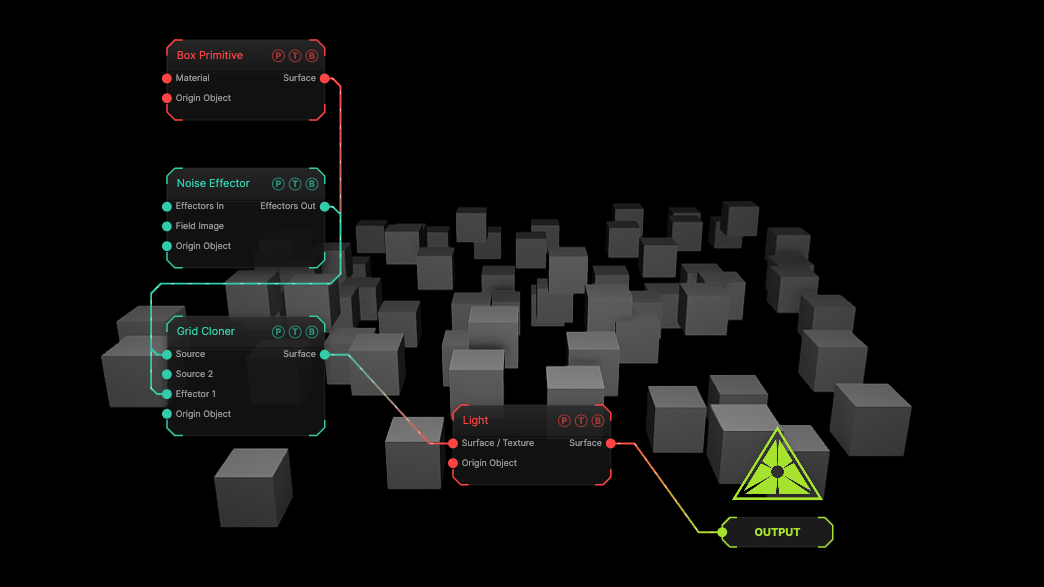

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. The default noise on a grid.
Inputs and outputs
| Port | Type | Purpose |
|---|---|---|
| Effectors In | Effector | The previous effector in the chain. |
| Field Image | Texture | A texture read by the Image field shape. |
| Origin Object | Surface | A Null to parent to. |
| Effectors Out | Effector | Wire into the next effector or a cloner's Effector port. |

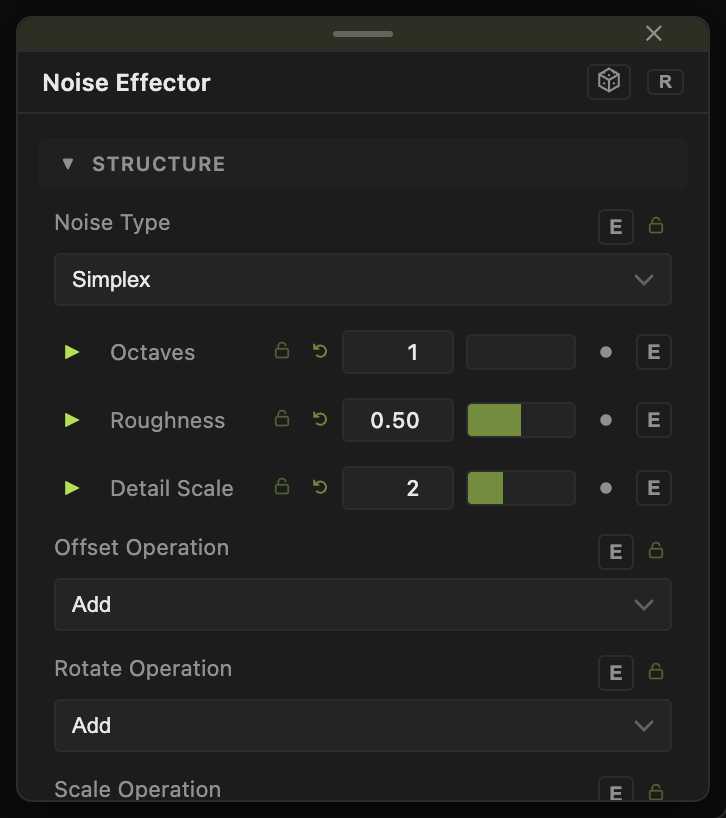

Parameters
- Noise Scale (0.01–8, default 0.5), Speed (0–5, default 0.3).
- Noise Type — Simplex (default), Ridged, Turbulence. Octaves (1–8, default 1), Roughness (0–1, default 0.5), Detail Scale (1–4, default 2), Contrast (0.1–4, default 1).
- Offset X / Y / Z ± (default 0.5), Rotate ±, Scale ±.
- Offset Operation, Rotate Operation, Scale Operation — how each channel folds into the clone transform: Add (default for offset and rotation), Multiply (default for scale), or the other operations in the list.
Field and clamp
- Field (default off), Field Shape, Field Size, Falloff, Inner Radius, Invert Field, Field Follows Mouse, Image Channel, and the Field Position / Heading / Pitch / Roll / Scale block limit where the effector acts.
- Clamp (default off) with Max Offset (default 5), Max Rotation (default 180), Min Scale (default 0), Max Scale (default 4).
- Highlight Field and Highlight Color draw the field in the viewport.
Every slider has a per-parameter animation bar, so it can be animated, audio driven, or MIDI mapped.
Examples
Terrain — a flat grid, Offset Y ± 2, Noise Type Ridged.
Troubleshooting
Nothing changes — the effector's Effectors Out must land on one of the cloner's Effector ports.
