Quantize
Snaps a 0–1 input to N evenly spaced steps.
The Quantize node rounds its input to a fixed set of levels.
- One control, Steps
- Found in the node graph under Modifiers → Value & Math

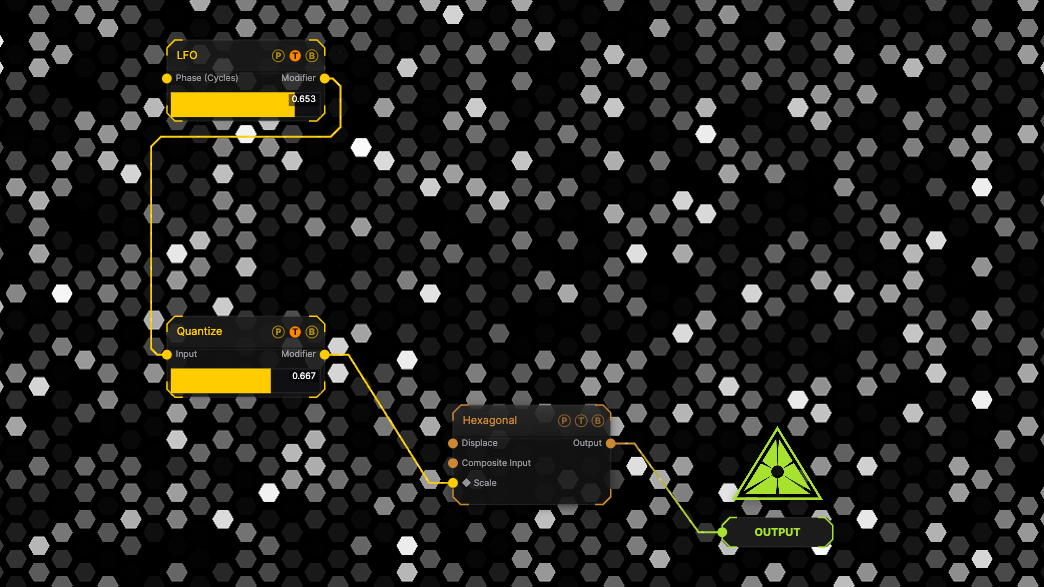

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. The modifier drives the Scale of a Hexagonal generator; the meter on the node shows its live value.
Inputs and outputs
| Port | Type | Purpose |
|---|---|---|
| Input | Modifier | The value to process, 0–1 unless the source says otherwise. |
| Modifier | Modifier | Drag it onto a parameter row, or wire it into another modifier's input. |

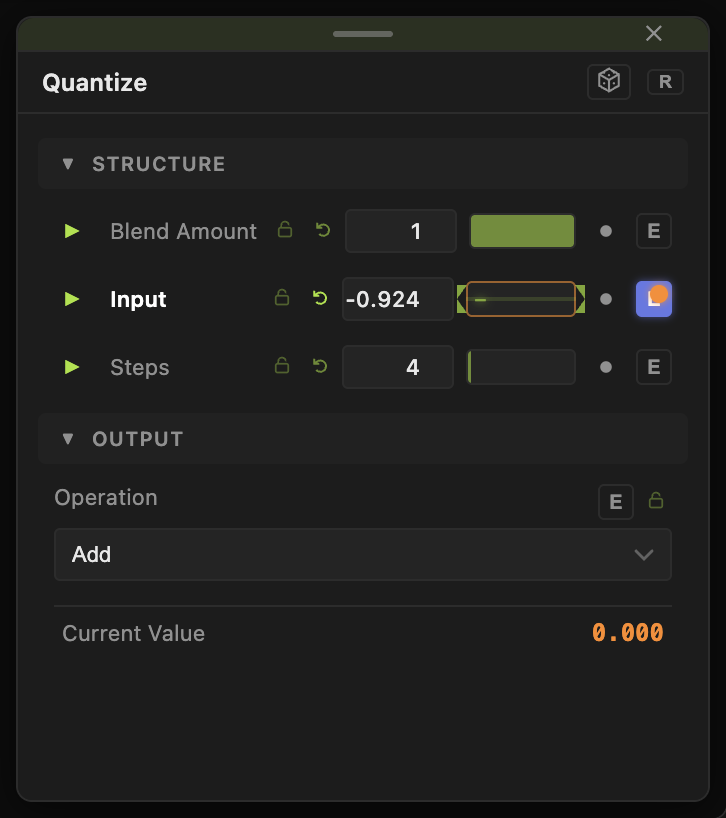

Parameters
- Steps (2–64, default 4).
Every slider has a per-parameter animation bar and can itself be driven by another modifier.
Examples
Stepped rotation — an LFO into Quantize at 8 steps, bound to a Rotation.
Troubleshooting
The parameter does not move — check the bound parameter's Operation at the port. At Multiply against a value of 0 the result stays 0.
